8-150mm telescoping gauge set

Price: USD8.5/box

EMAIL

Features:


1. Measuring range: 8-150mm or 5/16" to 6"


2. Set: 6pcs/set

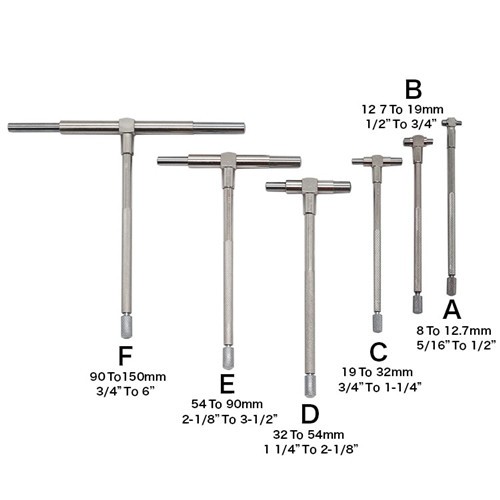

3. The sets contains:

Size A: 5/16" - 1/2" (8 mm to 12.7mm)

Size B: 1/2"- 3/4" (12.7mm to 19mm)

Size C: 3/4" - 1-1/4" (19mm to 32mm)

Size D: 1-1/4" - 2-1/8" (32mm to 54mm)

Size E: 2-1/8" - 3-1/2" (54mm to 90mm)

Size F: 3-1/2" - 6" (90mm to 150mm)


4. Under uniform spring tension, the plunger of the gage expand from the center to the diameter of the hole or width of slot being measured and then locked in place by a knurled knob, the hole size is found by measuring over the two contact point with a micrometer or caliper.


5. The telescoping gauges are used to measure internal diameter or internal through-groove of the workpiece by comparative method.

tele 2_副本.jpg
